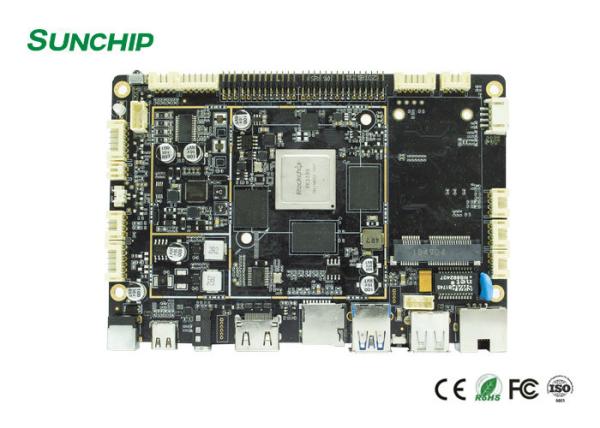

RK3399 Media Player Motherboard Lcd Advertising Display Armboard
Digital Signage Display Development PCBA Board Android Motherboard
Overview:
Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.0 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
Characteristic:
- It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.

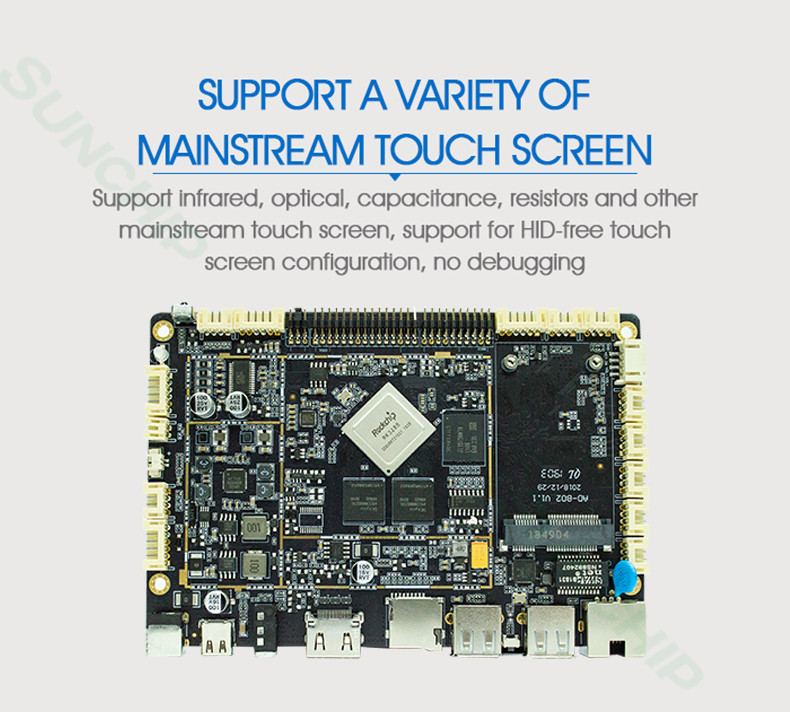

- Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
- A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
- Multi-channel USB interface, serial output.
- Support 4K video play with HD 2.0 HD output.
- Strong anti-electromagnetic interference and electromagnetic compatibility.
| Hardware Spec |
| System | CPU&GPU | RK3399 dual core Cortex-A72+quad core Cortex-A53,GPU ARM Mali-T860MP4 |
| RAM | LPDDR4 4GB/8GB(optional) |
| Memory | 16GB/32GB/64GB(optional) |
| Operating system | Android 7.1.2 |
| Network | WiFi | 802.11a/b/g/n/ ac (2.4G/5G optional) |
| Mobile network | 4G LTE FDD/LTE TDD/WCDMA/GSM (optional) |
| Bluetooth | Bluetooth 4.0 |
| Ethernet | 10M/100/1000M Ethernet |
| Language | Multi-Language support |
| Interface |
| Interface | USB interface*2 | support USB2.0 host*1+support USB3.0 host*1 |
| Type-C interface | Type-C*1 |
| DC | DC power 12V input |
| TF card | TF Card (micro SD card), up to 64GB |
| HD | support HD_4K 2.0 out |
| Display interface | EDP interface_2K output /LVDS interface_1080P output(optional) |
| Speaker interface | 8Ω 5W*2(optional) |
| UART interface | UART2 interface*1(optional) |
| IR remote control | support IR Remote Control |
| USB port extension | support USB extension host*1(optional) |
| RJ45 | 10/100/1000M Ethernet port |
| Headset/AUDIO Out | 3.5mm stereo headphone output*1 |
| Media Parameter |
| Media Playback | Video format | support H.264,MPEG2,VP6,VP8,MVC,etc.format 2160P@24FPS decode. YouTube,etc. online video,up to 1080P,HTML5 video playback, Flash10.1 player |
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 |
| Image Format | JPG,BMP,PNG |
| System Management |
| System Management | APK install | APK installer |
| Root permission | Original Android system, open root permissions, product customization development |
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended |
| OTA upgrade | Support OTA remote upgrade |
